Brinell hardness indentation automatic measurement system adopts advanced machine vision technology, using CCD lens brinell hardness tester after the force test left by the indentation, automatic identification and automatic measurement of indentation diameter on the laptop computer, through the screen directly display the brinell hardness value of the tested material, the measurement process is efficient, simple, objective and reliable.

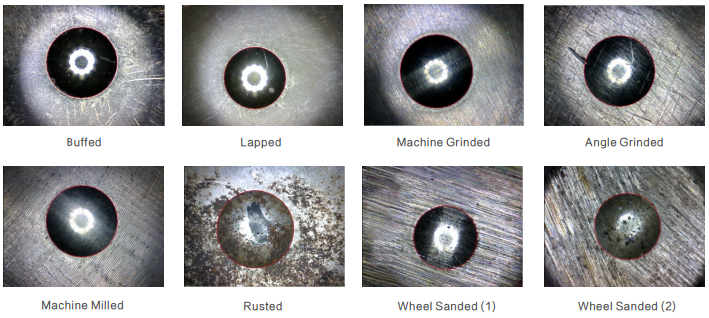

Indentation images:

Leading image processing technology, for a variety of grinding methods to get the workpiece surface, as long as the human eyes can identify the indentation, can be achieved 100% automatic identification measurement.

Technical parameters:

Ms-1a: For use with 10mm and 7.26mm ball, 3000/1580/1000/500kgf test force.

Ms-1b: For use with 5mm，4mm and 2.5mm ball, 1580/750/250/125/187.5/62.5kgf test force.

Ms-1c: For use with 2.5mm ball.

 Test Range: 16 HBW~650 HBW

Accuracy: ±1% HBW

Repeatability: ±1% HBW

Resolution: 11 μm  (Ms-1a)

                   5.6 μm (Ms-1b)

                   2.8 μm (Ms-1c)
